Product Introduction

Range of Product

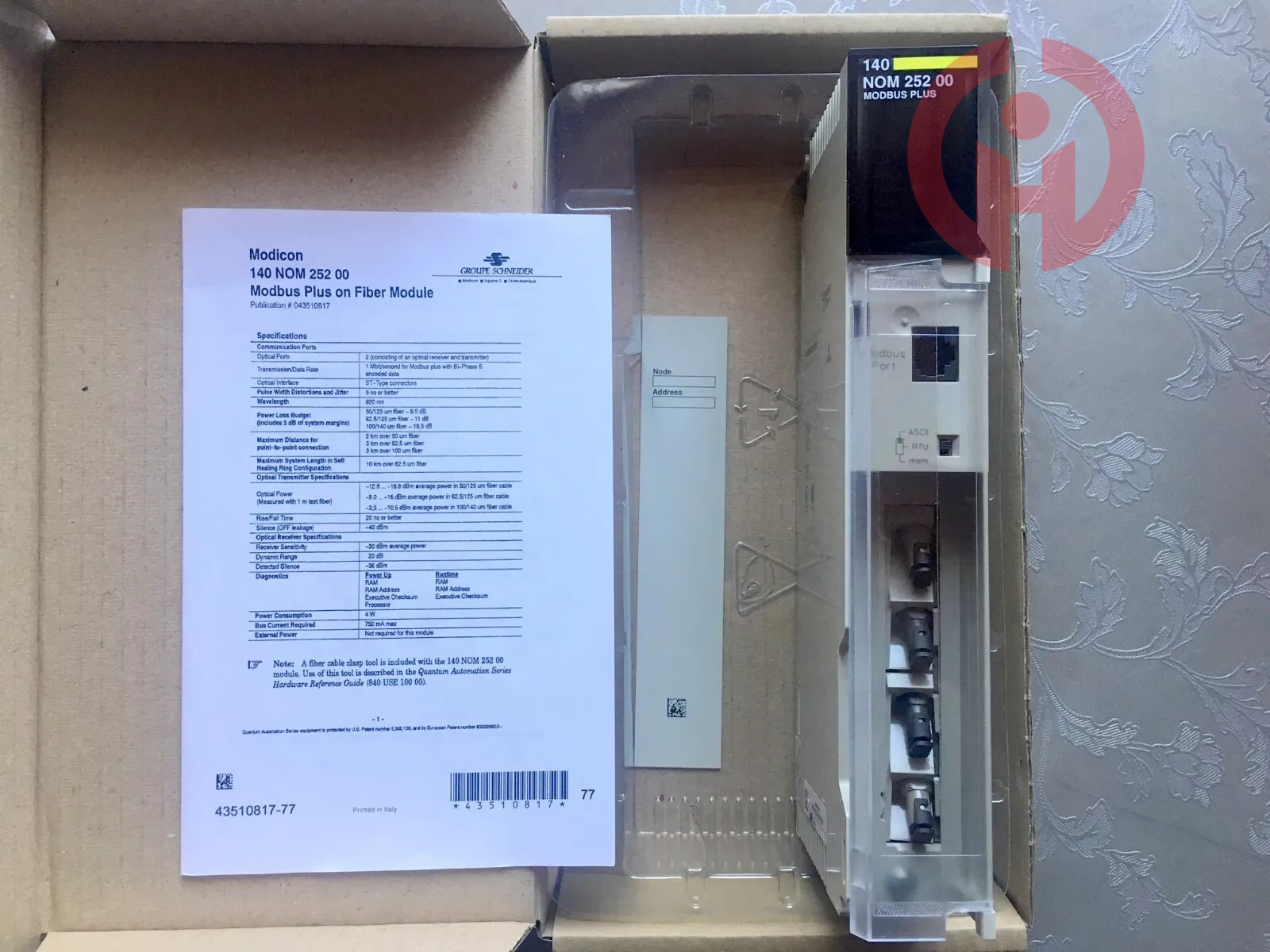

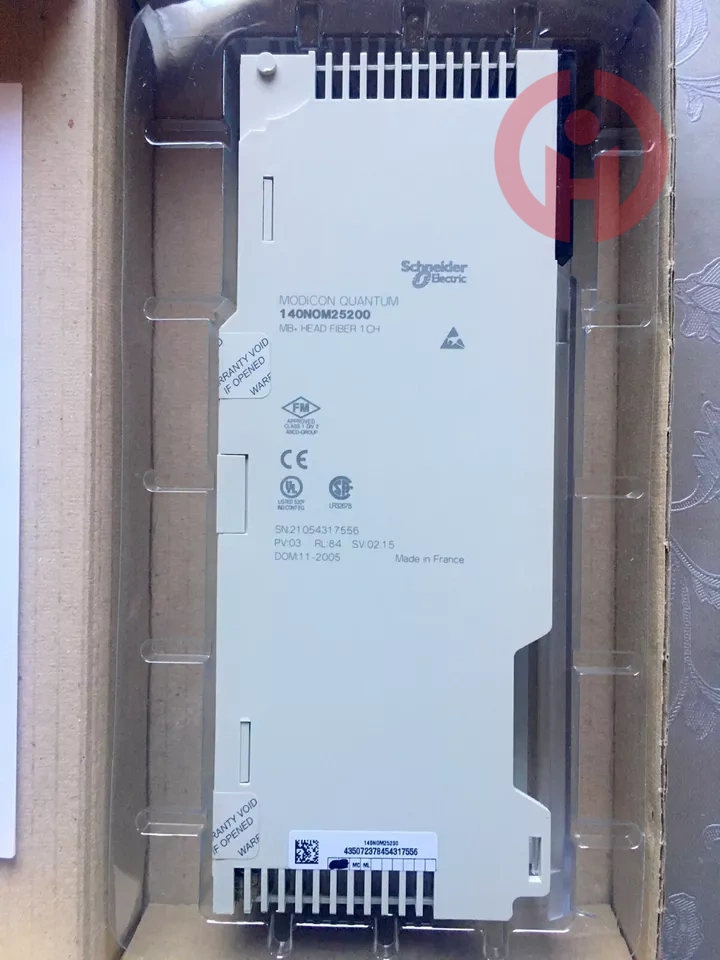

Modicon Quantum automation platform

Product or Component Type

DIO head-end adaptor

Complementary

Number of port

1 Modbus Plus fiber optic single copper

1 Modbus RS232 twisted pair

Transmission Rate

1 Mbit/s

Electrical connection

1 connector RJ45

2 connectors TX/RX

I/O words

30 I/32 O

Checks

RAM

RAM address

Processor

Checksum

Power dissipation in W

4 W

Minimum pulse width distortion/jitter

5 ns

Wavelength

0.000032284 in (820 nm)

Power loss budget

11 dB 62.5/125 µm

16.5 dB 100/140 µm

6.5 dB 50/125 µm

Optical transmission

-16…-9 dBm 100/140 µm

-19.8…-12.8 dBm 50/125 µm

-3.5…110.5 dBm 62.5/125 µm

Rise/fall time

20 ns

Dynamic range

20 dB

Detected silence

-36 dBm

Sensitivity scale

> 30 dBm

Bus current requirement

750 mA

Environment

Resistance to electrostatic discharge

4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields

9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation

32…140 °F (0…60 °C)

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Relative Humidity

95 % without condensation

Operating altitude

<= 16404.2 ft (5000 m)

Standards

UL 508

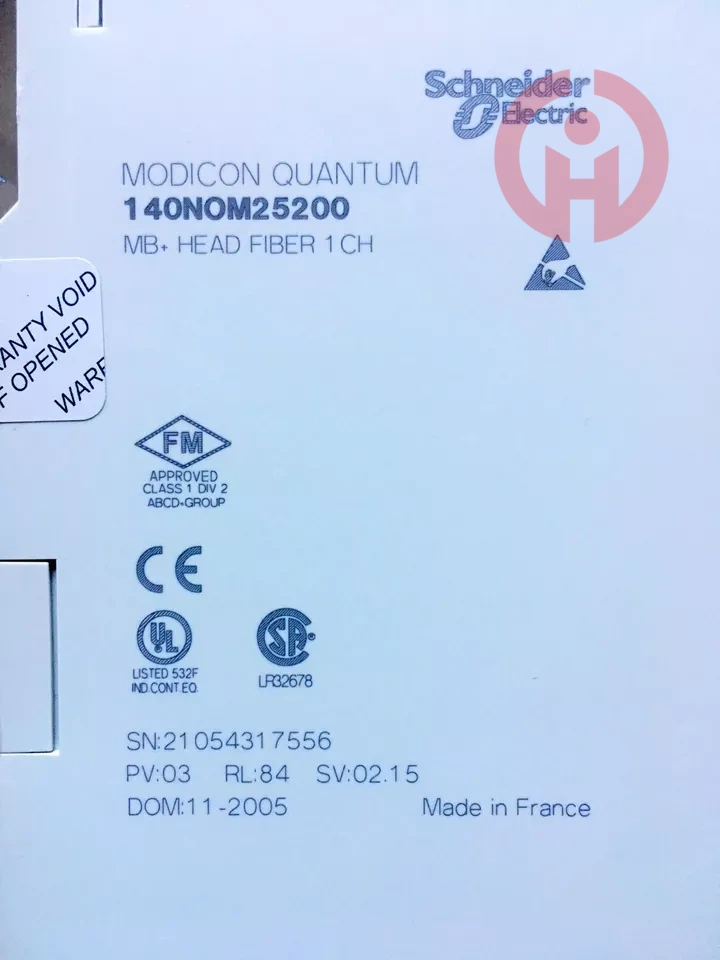

Product Certifications

CSA Class 1 Division 2

RINA

GL

RMRS

C-tick

GOST

DNV
