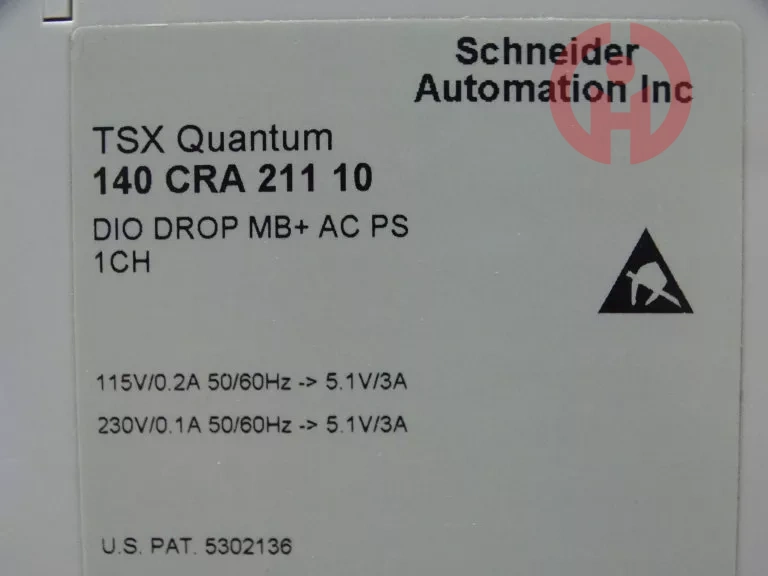

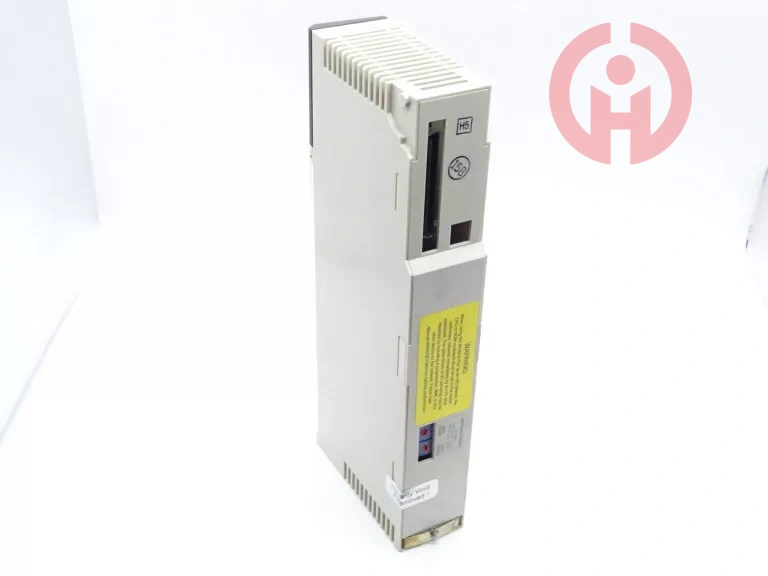

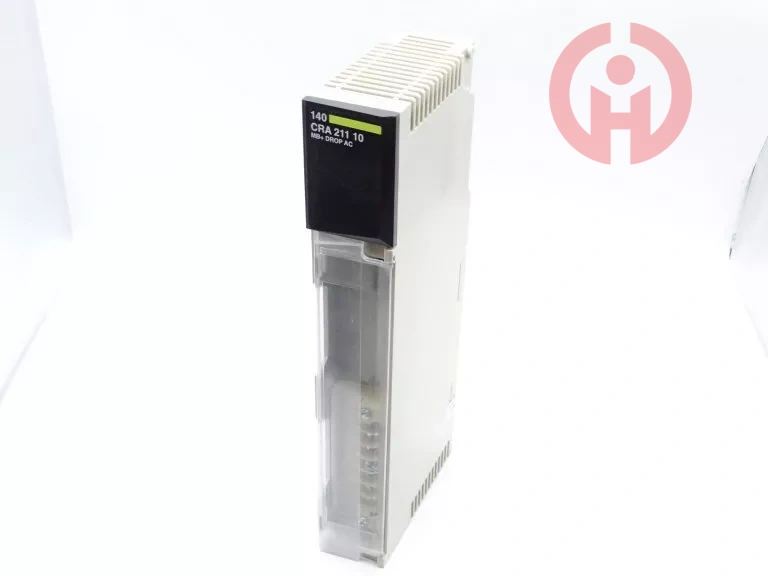

Product Introduction

Number of port1 single

[Us] rated supply voltage115/230 V AC

Supply voltage limits85…276 V

Supply frequency47...63 Hz

Maximum supply current0.2 A 115 V

0.4 A 230 V

Inrush current10 A 115 V

20 A 230 V

Rated power in VA50 VA

Associated fuse rating1.5 A

Output voltage5.1 V

Nominal output current3 A

Minimum load current0 A

Short-circuit protectionWith

Output overvoltage protectionWith

I/O words30 I/32 O

Typical backplanes3 positions

2 positions

6 positions

16 positions

10 positions

4 positions

Diagnostics startupRAM address

RAM

Checksum

Diagnostics run timeRAM address

RAM

Checksum

Power dissipation in W11 W

Connections - TerminalsTerminal block, 7 poles

Module formatStandard

EnvironmentResistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)

Protective treatmentTC

StandardsUL 508

Product CertificationsCSA Class 1 Division 2

UL

DNV

C-tick

GOST
