Product Introduction

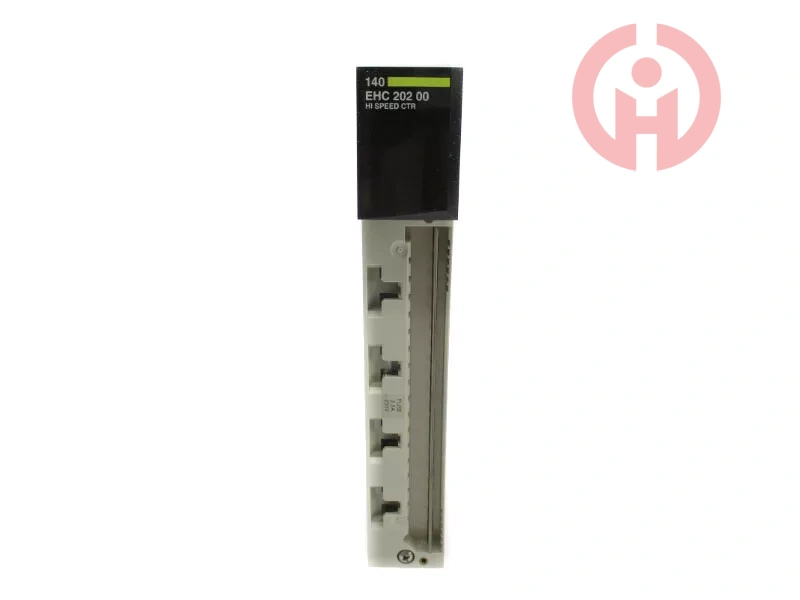

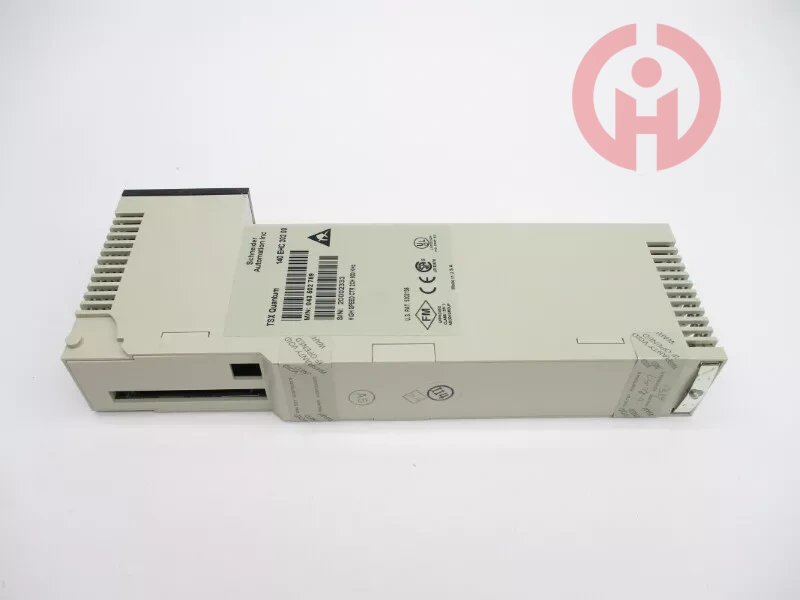

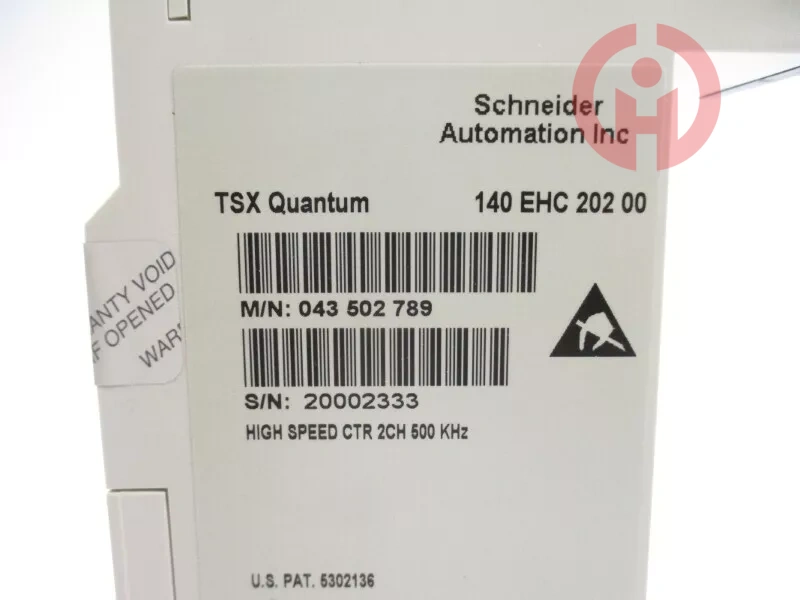

Range of ProductModicon Quantum automation platform

Product or Component TypeHigh-speed counter module

Number of channels2

ComplementaryAddressing requirement6 output words

6 input words

Data format2147483647 dec 32 bits

65535 dec 16 bits

Counting input typeIncremental or quadrature

Counting frequency500000 Hz

Discrete input voltage< 30 V

Operating modeIncremental or quadrature discrete input

Input resistance10 kOhm discrete input

Operating threshold0...11 V single ended mode 24 V DC at state off

0...2 V single ended mode 5 V DC at state on

0 V single ended mode 12 V DC at state on

13...24 V single ended mode 24 V DC at state on

2...7 V single ended mode 12 V DC at state off

>= 1.8 V differential mode

3.5...5 V single ended mode 5 V DC at state off

Discrete output number4

Discrete output typeField Effect Transistor (FET)

Discrete output voltage0 V switch off DC

0.4 V switch on DC

Load current0.5 A

Maximum leakage current0.4 mA state off

Maximum voltage drop<0.4 V state on

Protection type36 V transorb discrete output

Isolation between channels and bus1780 Vrms 60 s

Fault typeLoss of output field power

Output short-circuit protectionBlown fuse 2.5 A

Power dissipation4 + (0.4 x total module load current)

Bus current requirement650 mA

External power requirement19.2...30 V

Rack typeLocal

Remote

Distributed

Local signallingfor channel status 2 LEDs

MarkingCE

Current consumption<= 1050 mA 24 V DC external power supply

Module formatStandard

EnvironmentResistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)

StandardsUL 508

Product CertificationsC-Tick.1

CSA No 142

FM Class 1 Division 2

UL
