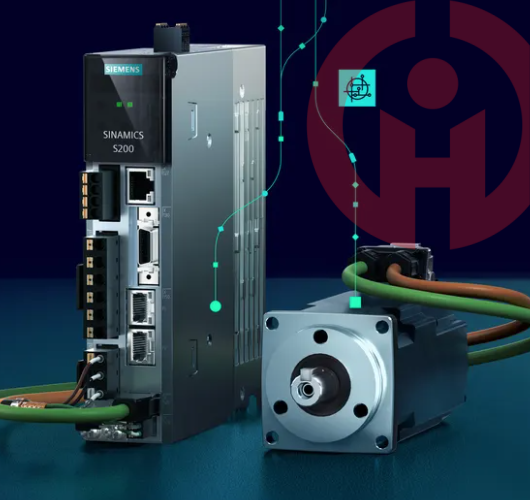

Product Introduction

Technical Features：

Easy to operate the debugging tool: Using the STARTER debugging tool, users can easily debug, optimize and set parameters.

Graphical display function: When setting drive parameters, the graphical interface helps users better understand and operate.

Self-optimization function: The self-optimization function set by the controller can be optimized according to the characteristics of the drive device.

Support multiple programming methods: It can be operated as a stand-alone application, integrated in SIMATIC STEP7 with TIA compatibility through DriveESBasic, or integrated into the SCOUT engineering system (for SIMOTION).

Rich diagnostic functions: Provide information such as control/status words for easy debugging and maintenance.

Efficient operation: Adopt advanced full digital control technology and IGBT voltage source PWM technology to ensure efficient operation of the equipment.

High-precision control: Two main control modes, vector control and motion control, provide precise torque control and fast dynamic response.

Flexible parameter configuration: Functional parameters can be customized, such as input signal normalization, acceleration and deceleration time of ramp function, etc., so that the device behavior is more in line with actual needs.

Function Blocks and Parameters

Function Blocks (FBs)

U950.01: May be the main function block, related to the basic control logic of the inverter or system initialization.

Modular Control Structure: The existence of U950.01 to U954.74 indicates that the control structure of the inverter is modular, allowing users to flexibly program through these function blocks.

Parameter Settings

K0153: Gain time or inverter gain, the specific application depends on the control algorithm of the inverter2.

n-Reg.time: The delay time of digital input and output, set to 1000ms, is critical to the response time of the control system.

P228.B, KK0152: Related to deviation release and sequence control, may involve position tracking or speed adjustment in motion control.

Connector Information

KK0152: Used for data exchange between devices, such as analog input/output signals2.

n-set, smooth: Describes the setting characteristics of the connector, which may be related to smooth switching or continuous control functions.

Application scenarios

Applicable to various industrial automation fields such as factory equipment.

Particularly suitable for motion control that requires frequent changes in speed or rotation direction, and for situations that require electric braking.
