Honeywell TK-ODD321 32-Point Discrete Output Module

Honeywell TK-ODD321 32-Point Discrete Output Module

Honeywell Output Module

Origin: USA


Brand: Honeywell

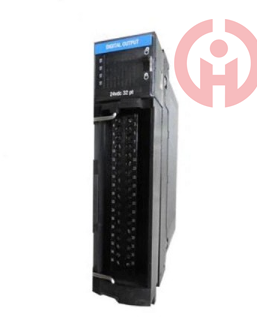

The Honeywell TK-ODD321 Output Module is a 32-channel discrete output module primarily used in industrial automation and process control applications.

0.00
0.00


Honeywell Output Module

Origin: USA


Brand: Honeywell


The Honeywell TK-ODD321 Output Module is a 32-channel discrete output module primarily used in industrial automation and process control applications.

  • Number of Outputs: 32 (16 points/common)

  • Output Voltage Range: 10-31.2 VDC @ 50°C (Linear derating), 10-28 VDC @ 60°

  • Output Current Rating:

    • Per Point: 0.5A maximum @ 50°C (Linear derating) | 0.35A maximum @ 60°C

    • Per Module: 16A maximum @ 50°C (Linear derating) | 10A maximum @ 60°C

  • Surge Current: 1A for 10ms each, repeatable every 2s @ 60C

  • Flash On Time: 100 µsec target, 150 µsec max

  • On-State Current Load (Minimum): 3.0 mA per output

  • On-State Voltage Drop (Maximum): 1 VDC @ rated current per point (3 VDC for IEC 1131-2)

  • Off-State Leakage Current (Maximum): 0.5 mA per point (1 mA per point IEC 1131-2 for 0.25 A output)

  • Configurable Fault States per Point: Hold Last State, ON or OFF (OFF is the default)

  • Configurable States in Program Mode per Point: Hold Last State, ON or OFF (OFF is the default)

  • Fusing: Not protected - Fused IFM is recommended to protect outputs

  • Reverse Polarity Protection: None - If module is wired incorrectly, outputs may be damaged.

  • Output Delay Time: Off to on: 1.0 ms maximum | On to off: 1.0 ms maximum

  • Power Dissipation: 6.1 W

  • Isolation Voltage:

    • Group to group: 100% tested at 2546V dc for 1s (250V ac maximum continuous voltage between groups)

    • User to system: 100% tested at 2546V dc for 1s

  • Connection Terminal Blocks: TC-TBCH, 36-position terminal block

  • Shipping Weight: 2 Kg
