SCHNEIDER adapter
Origin: France
Brand: Schneider

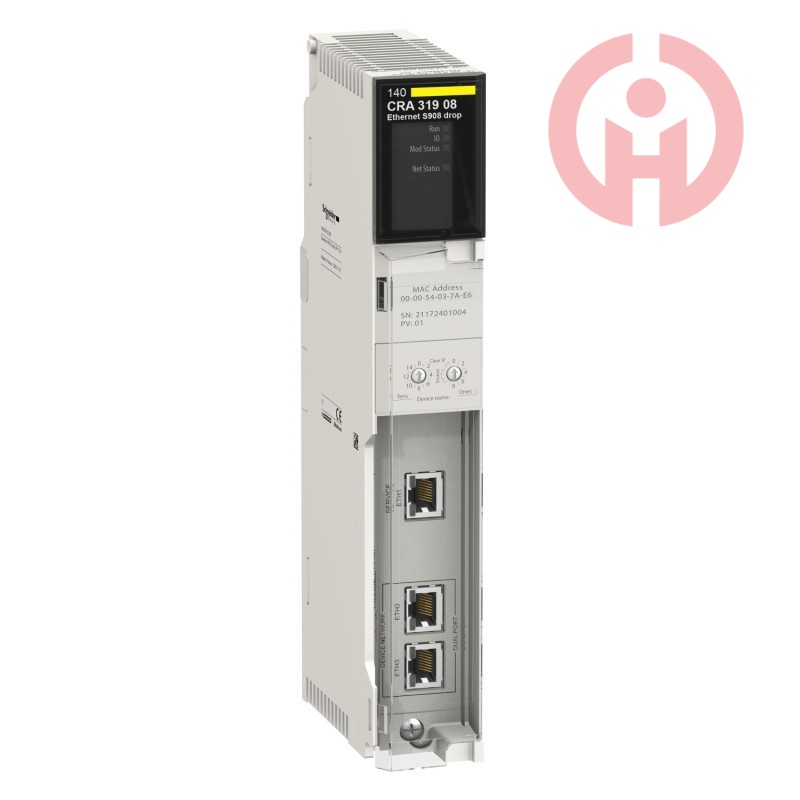

The Schneider 140CRA31908 adapter is an Ethernet remote site adapter designed specifically for Modicon Quantum systems, primarily used for communication connections between Modicon ePAC systems and the S908 bus. This adapter supports multiple communication protocols, including Modbus TCP and Ethernet IP, providing efficient data transmission and device control functionality
We have a large amount of inventory in our warehouse. Welcome to inquire online about any model and quantity, with discounted prices.
24-hour service for you
Product Introduction
Main
Range of Product
Modicon Quantum
Product or Component Type
Ethernet RIO drop adaptor
Number of port3
Integrated connection type
Ethernet IP/Modbus TCP service port
Ethernet IP/Modbus TCP device network
Communication Port Protocol
Ethernet IP/Modbus TCP
Product destination
Modicon Quantum
Device Application
To provide the ability for a M580 system to control Modicon S908 coaxial bus
Communication Service
The input data are collected and published to the remote I/O head adaptor
Output modules are updated with the data received from remote I/O head adaptor
Complementary
Local signalling
for module status (Mod Status) 1 LED (green/red)
for network communication status (Net Status) 1 LED (green/red)
for RUN 1 LED (green)
for I/O 1 LED (red)
Product Compatibility
BMEP586040
BMEH584040
BMEP585040
BMEH586040
BMEP584040
Environmental characteristic
Standard environment
Hazardous location class I division 2 EN/IEC 61131-1
Width
6.6 in (167 mm)
Height
2.0 in (50 mm)
Net Weight
1.221 lb(US) (0.554 kg)
Environment
Product Certifications
UL 508
CE
C-tick
Standards
IEC 61000-4-16
CSA C22.2 No 142
EN 55011
IP degree of protection
IP20 conforming to EN 61131-2
IP20 conforming to IEC 60527
Overvoltage category
Class I EN 61131-2
Ambient air temperature for operation
32…140 °F (0…60 °C) IEC 60068-2-2
32…140 °F (0…60 °C) IEC 60068-2-2
Ambient air temperature for storage
-40…185 °F (-40…85 °C) IEC 60068-2-2
-40…185 °F (-40…85 °C) IEC 60068-2-2
Vibration resistance
3.5 mm constant amplitude 0.5…8.4 Hz)EN 61131-2
1 gn constant acceleration 8.4…150 Hz)EN 61131-2
Operating altitude
6561.68 ft (2000 m)
Maximum altitude transport
9842.5 ft (3000 m)
Relative humidity
93 % conforming to IEC 60068
Many products are not yet on the shelves please contact us for more products.
If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will
arrange to take pictures in the warehouse to confirm!
