Product Introduction

Main

Range of Product

Modicon Quantum

Product or Component Type

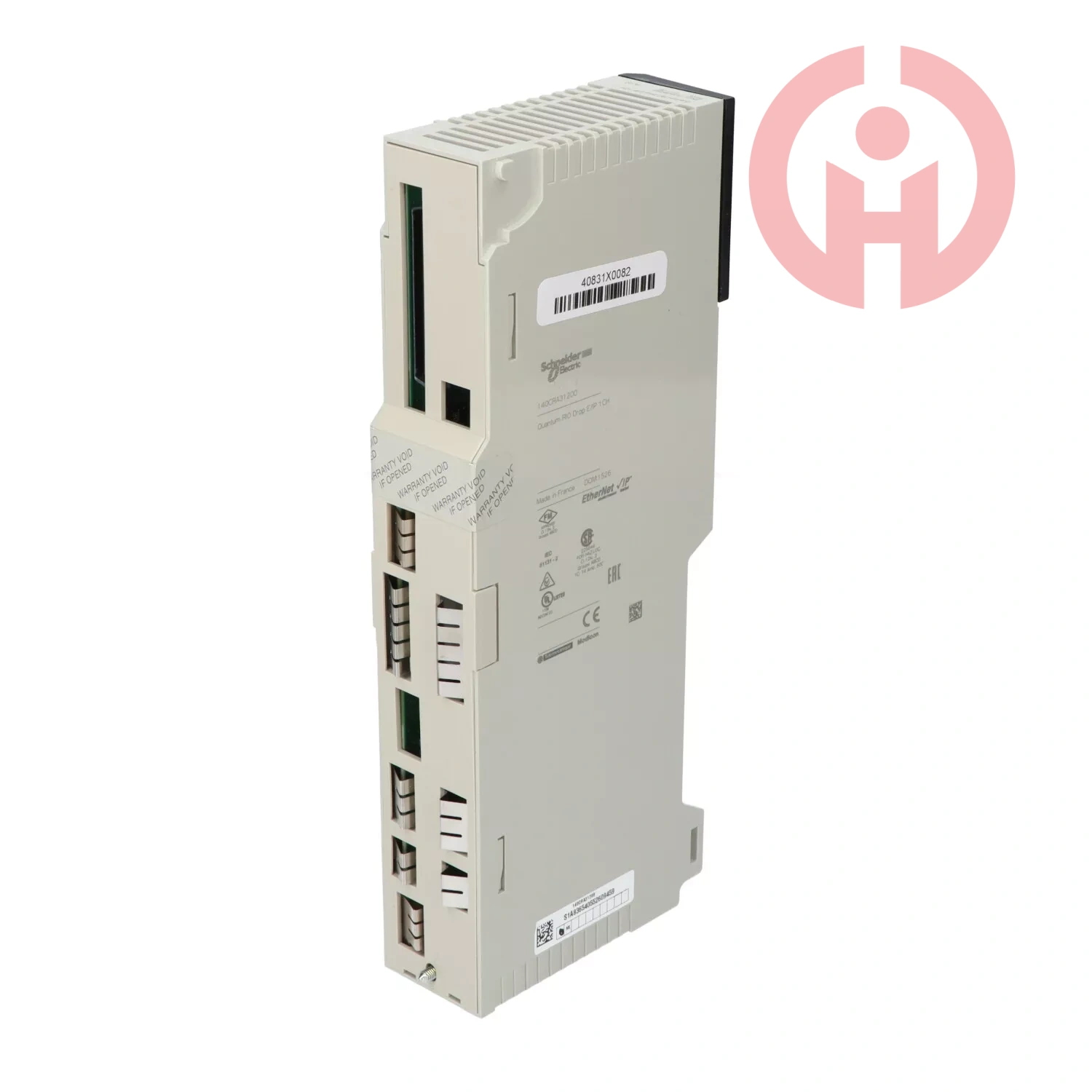

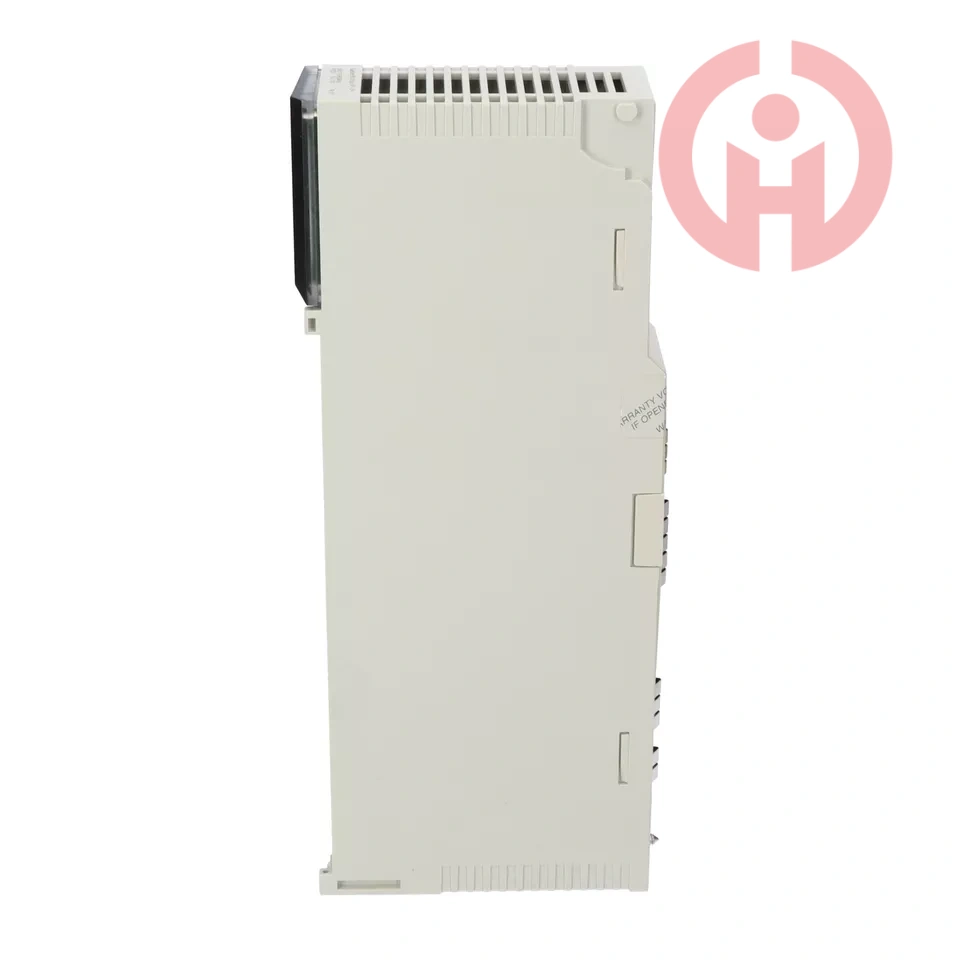

Ethernet RIO drop adaptor

Number of port3

Integrated connection type

Ethernet IP/Modbus TCP service port

Ethernet IP/Modbus TCP device network

Communication Port Protocol

Ethernet IP/Modbus TCP

Communication Service

The input data are collected and published to the remote I/O head adaptor

Output modules are updated with the data received from remote I/O head adaptor

Complementary

Topology

Daisy chain loop

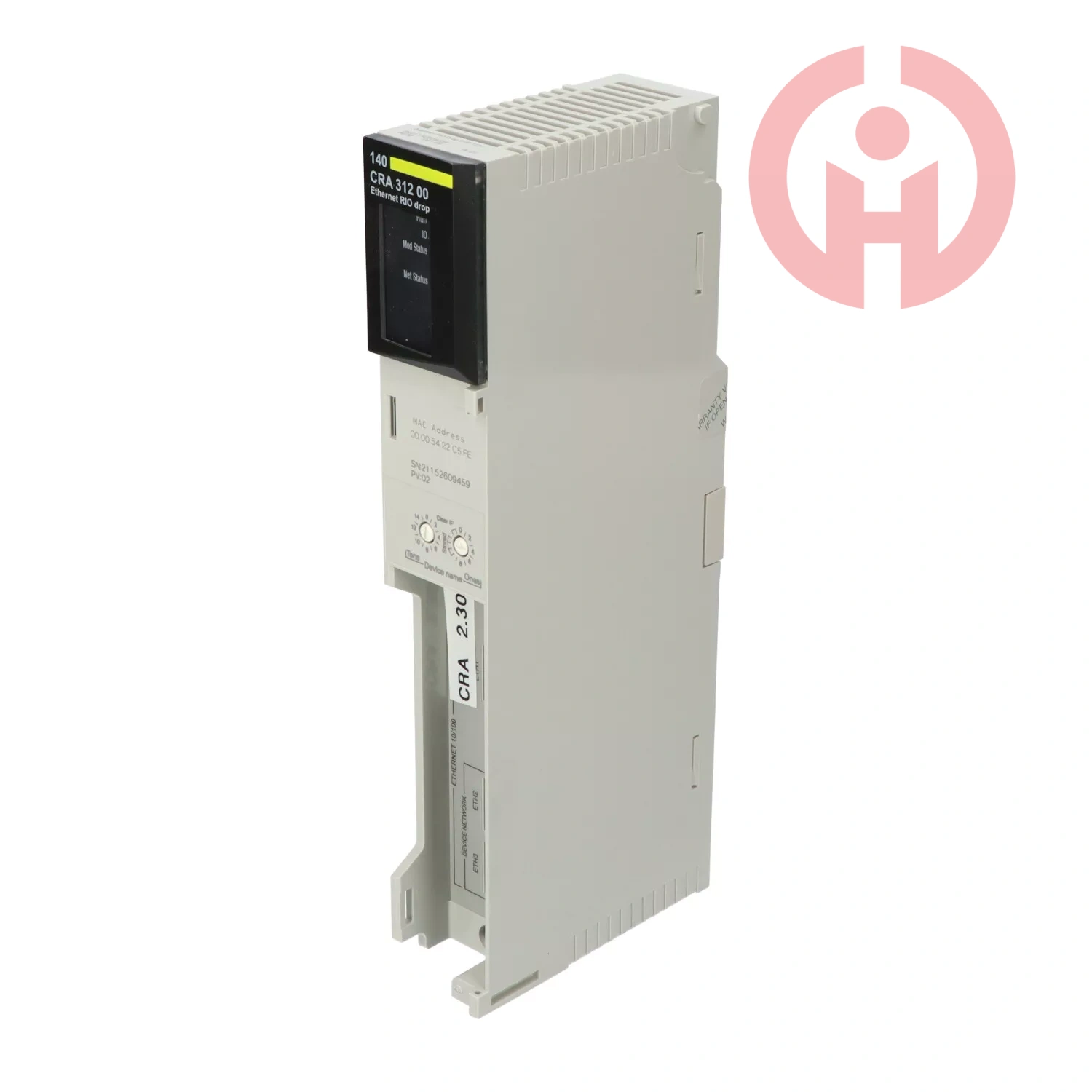

Local signalling

for module status (Mod Status) 1 LED (green/red)

for network communication status (Net Status) 1 LED (green/red)

for RUN 1 LED (green)

for I/O 1 LED (red)

Product Compatibility

140CRP31200

Environmental characteristic

Standard environment

Hazardous location class I division 2 EN/IEC 61131-1

Width

6.6 in (167 mm)

Height

2.0 in (50 mm)

Net Weight

1.221 lb(US) (0.554 kg)

Environment

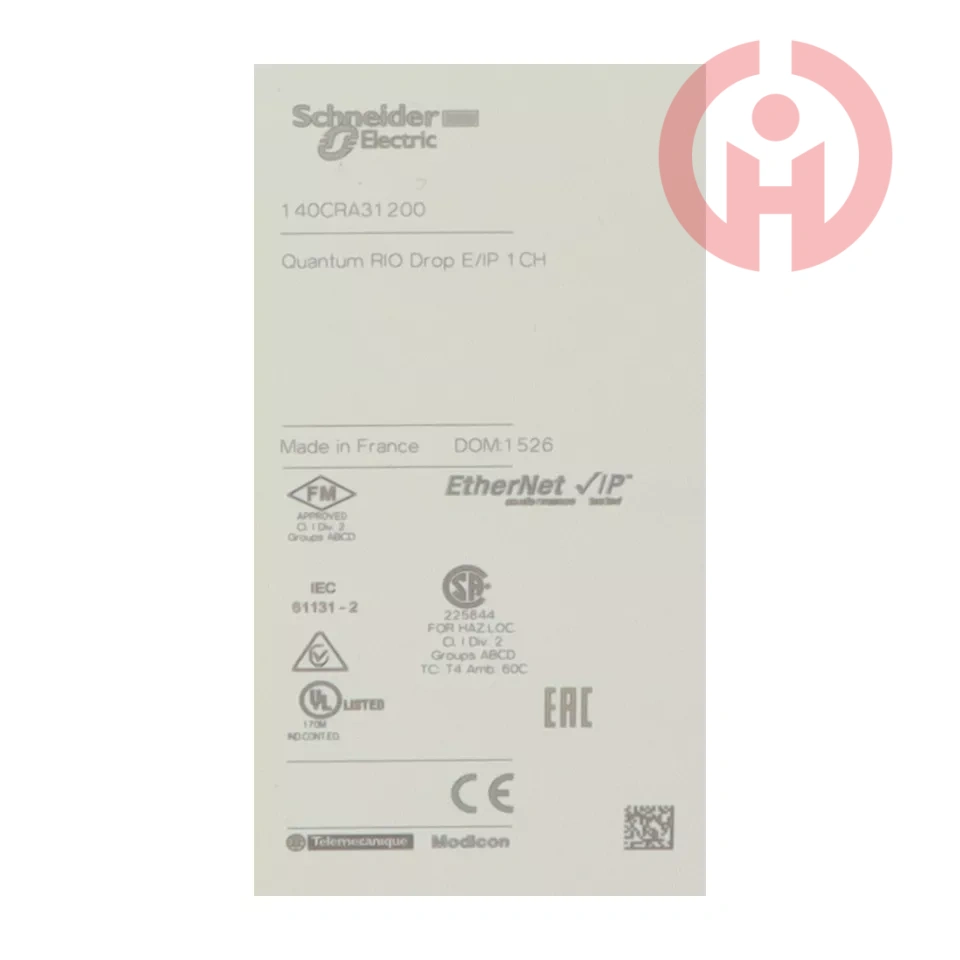

Product Certifications

CE

UL 508

C-tick

Standards

IEC 55011

CSA C22.2 No 142

IEC 61000-4-16

IP degree of protection

IP20 conforming to IEC 61131-2

IP20 conforming to IEC 60527

Overvoltage category

Class I IEC 61131-2

Ambient air temperature for operation

32…140 °F (0…60 °C) IEC 60068-2-2

32…140 °F (0…60 °C) IEC 60068-2-2

Ambient air temperature for storage

-40…185 °F (-40…85 °C) IEC 60068-2-2

-40…185 °F (-40…85 °C) IEC 60068-2-2

Vibration resistance

3.5 mm constant amplitude 0.5…8.4 Hz)IEC 61131-2

1 gn constant acceleration 8.4…150 Hz)IEC 61131-2

Operating altitude

6561.68 ft (2000 m)

Maximum altitude transport

9842.5 ft (3000 m)

Relative humidity

93 % conforming to IEC 60068
