Product Introduction

Main

Range of Product

Modicon Quantum automation platform

Product or Component Type

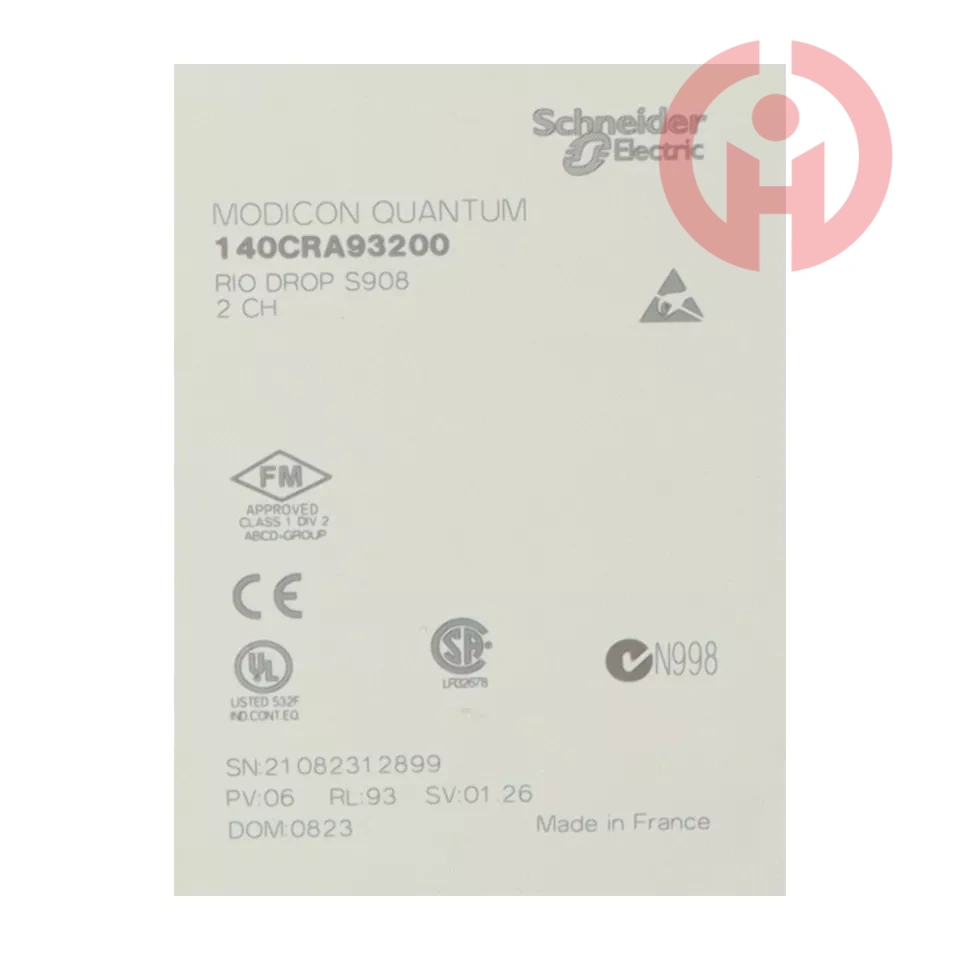

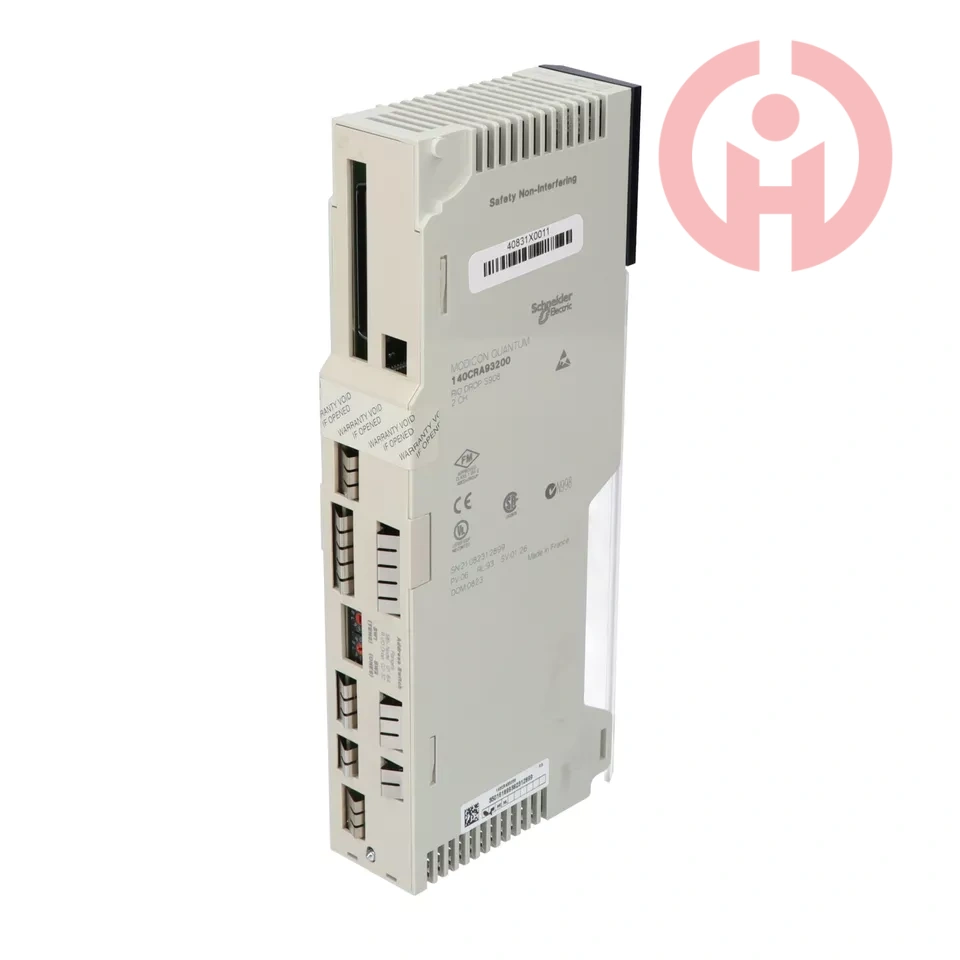

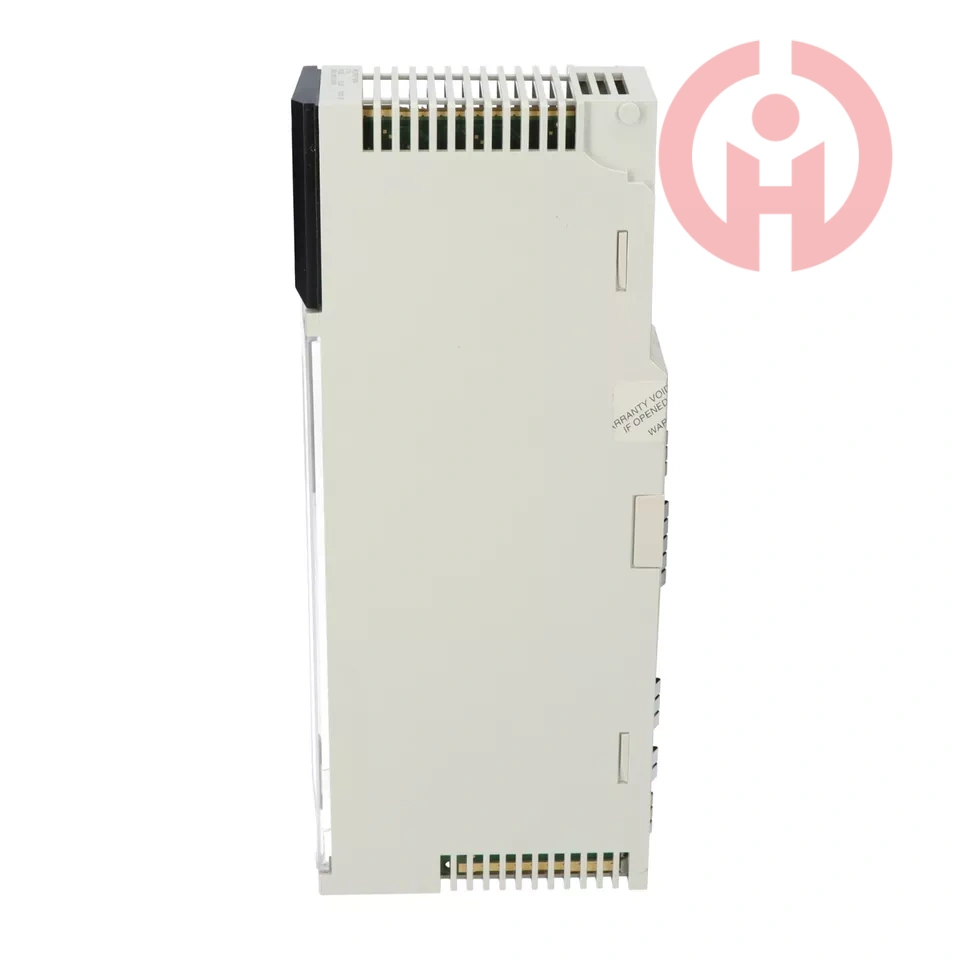

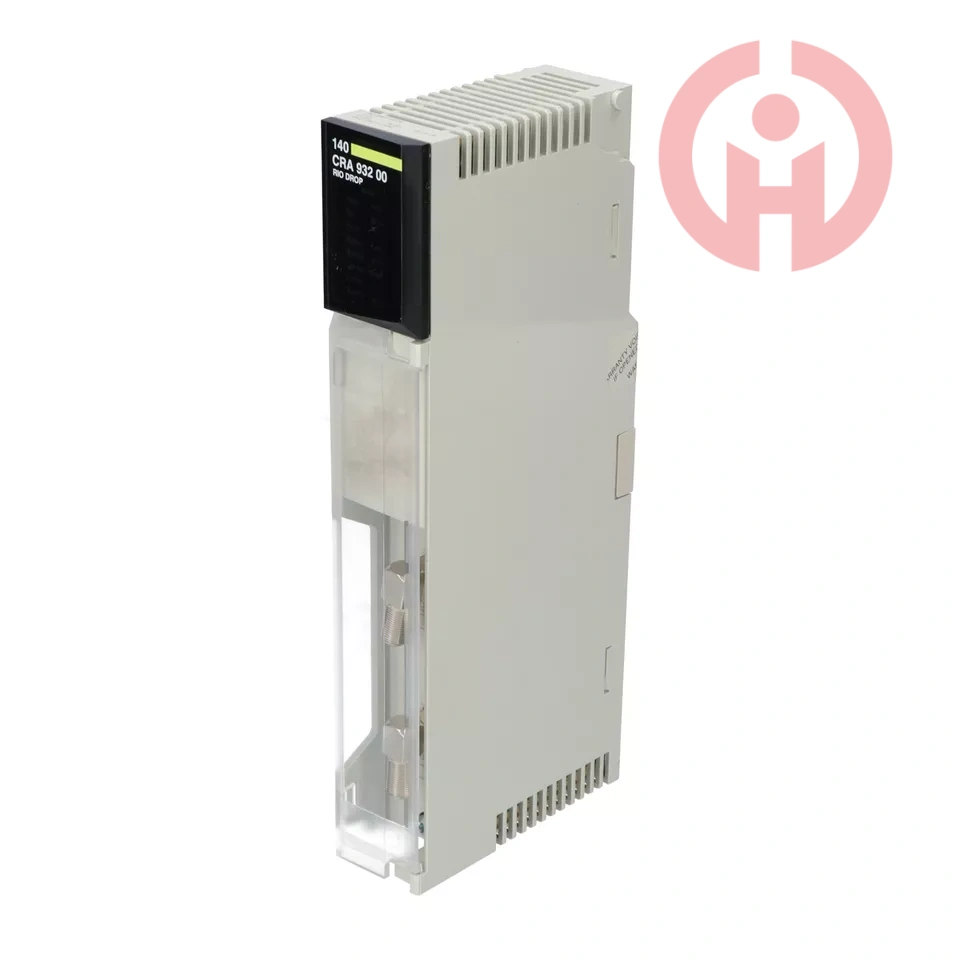

RIO drop adaptor module

Complementary

Product Compatibility

Quantum

Maximum Number of I/O Expansion Module27

Type of cable

75 Ohm coaxial

Transmission Rate

1544 Mbit/s

Dynamic range

35 dB

Isolation voltage

500 V DC coaxial center and ground

Electrical connection

2 female connectors F, elbowed with redundant cable

Diagnostics startup

Power up and runtime

RAM address/data

Executive checksum

Power dissipation in W

3.8 W 2 channels

Bus current requirement

750 mA 2 channels

Module format

Standard

Environment

Standards

UL 508

CUL

CSA C22.2 No 142

Resistance to electrostatic discharge

4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields

9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3

Ambient Air Temperature for Operation

32…140 °F (0…60 °C)

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Relative Humidity

95 % without condensation

Operating altitude

<= 16404.2 ft (5000 m)
