Product Introduction

Range of Product

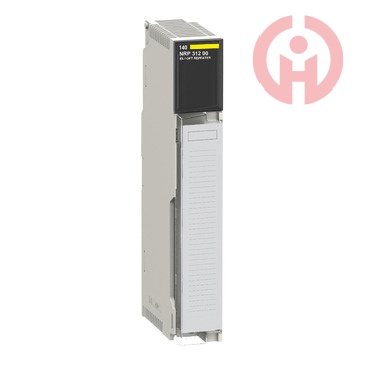

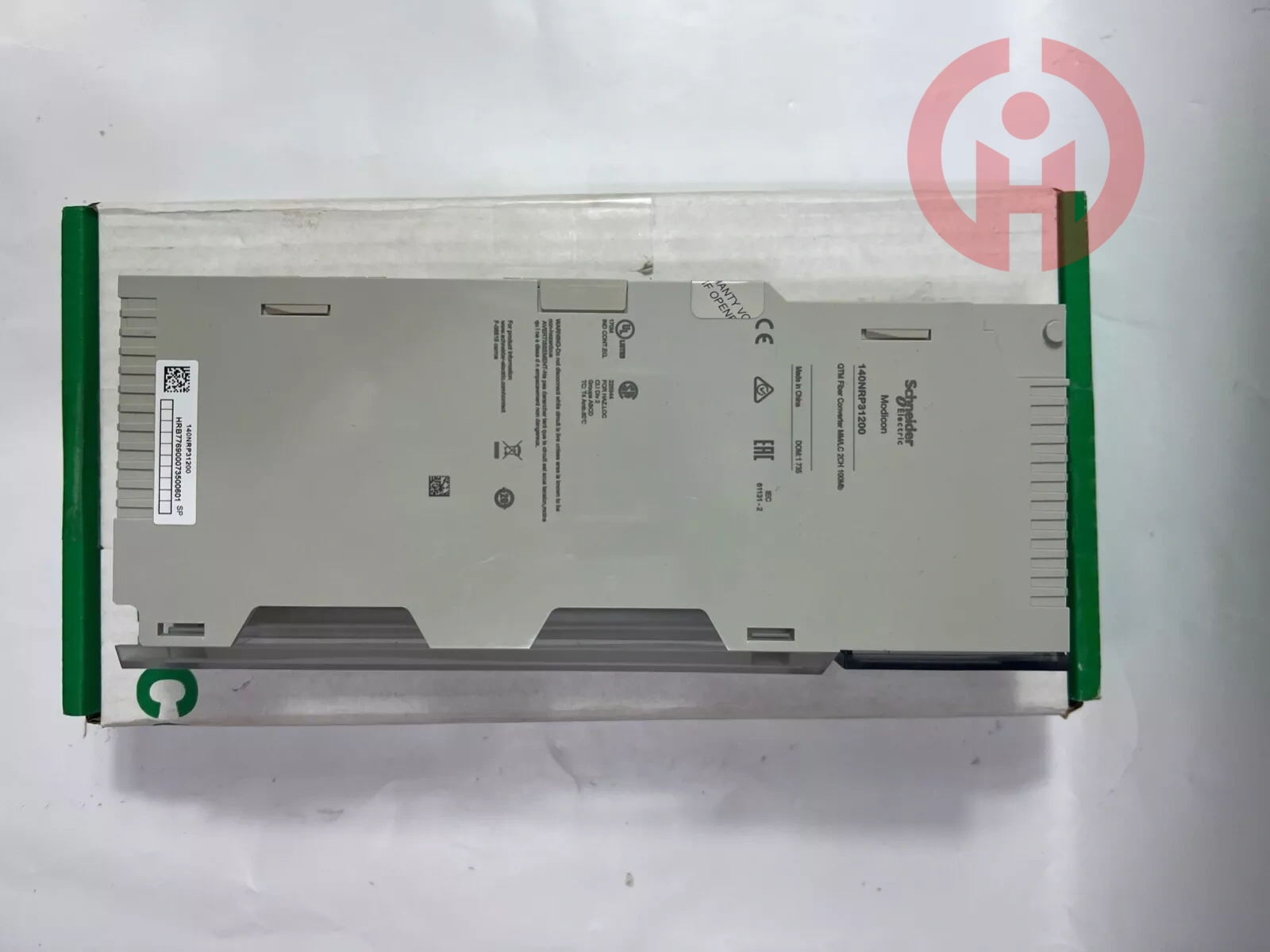

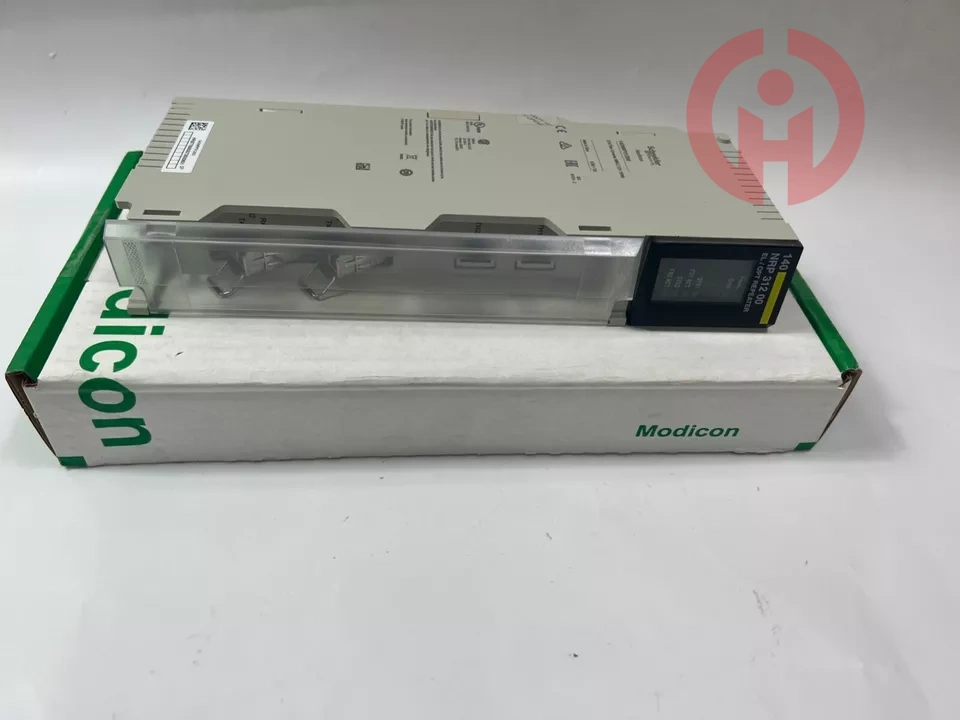

Modicon Quantum automation platform

Product or Component Type

Fibre converter

Optic fiber type

Multi mode

Complementary

Bus current requirement

1000 mA

Power dissipation in W

5 W

Inrush current

1 A 5 V DC

Number of Port

2 fiber optic LC

2 ETHERNET RJ45

Local signalling

1 LED green RDY module status

1 LED red ERR internal fault, module failure

1 LED green STS1 channel 1 link status

1 LED green FX1 ACT channel 1 communication status

1 LED green STS2 channel 2 link status

1 LED green FX2 ACT channel 2 communication status

Wavelength

0.000051575 in (1310 nm)

Optic distance between 2 transceivers

6561.7 ft (2000 m) 50/125 µm)-23.5…-14 dBm

9842.5 ft (3000 m) 62.5/125 µm)-20…-14 dBm

Attenuation

-23.5…-14 dB 50/125 µm)

-20…-14 dB 62.5/125 µm)

Rise/fall time

3 ns

Receiver Sensitivity

- 30 dBm

Detected silence

-45 dBm

Marking

CE

Material

PC (polycarbonate)

Width

1.59 in (40.34 mm)

Height

9.8 in (250 mm)

Depth

4.09 in (103.85 mm)

Net Weight

1.221 lb(US) (0.554 kg)

Environment

Ambient Air Temperature for Operation

32…140 °F (0…60 °C)

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Relative humidity

0…95 %

Operating altitude

0...6561.68 ft (0...2000 m)

Standards

CSA C22.2 No 142

FM Class 1 Division 2

UL 508

Product Certifications

C-tick

TÜV

Merchant Navy
