SCHNEIDER Ethernet fiber optic module
Origin: France
Brand: Schneider

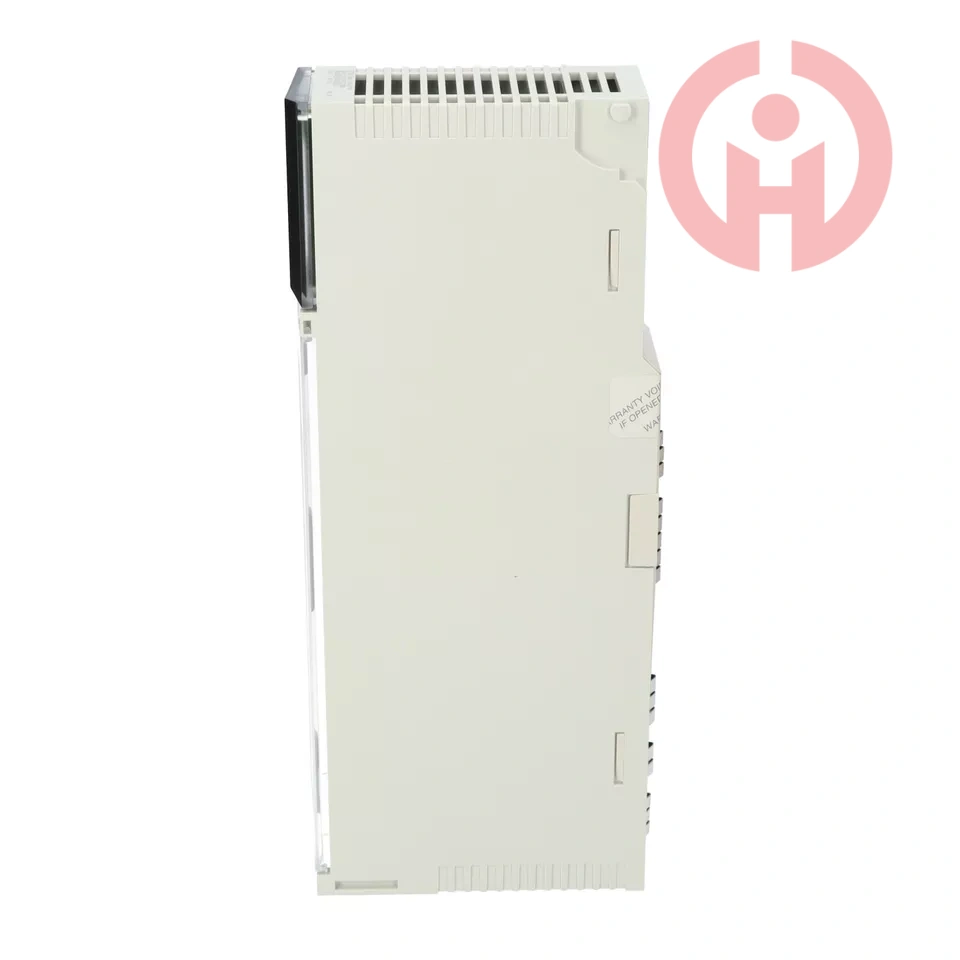

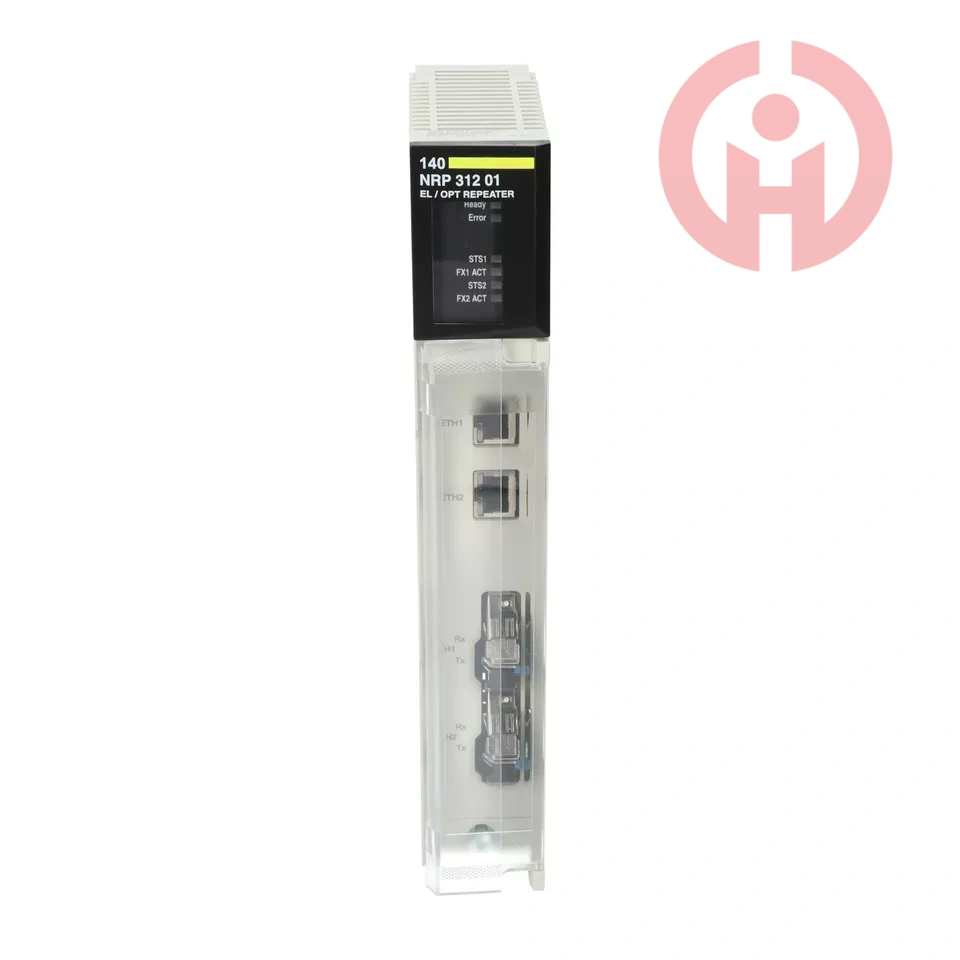

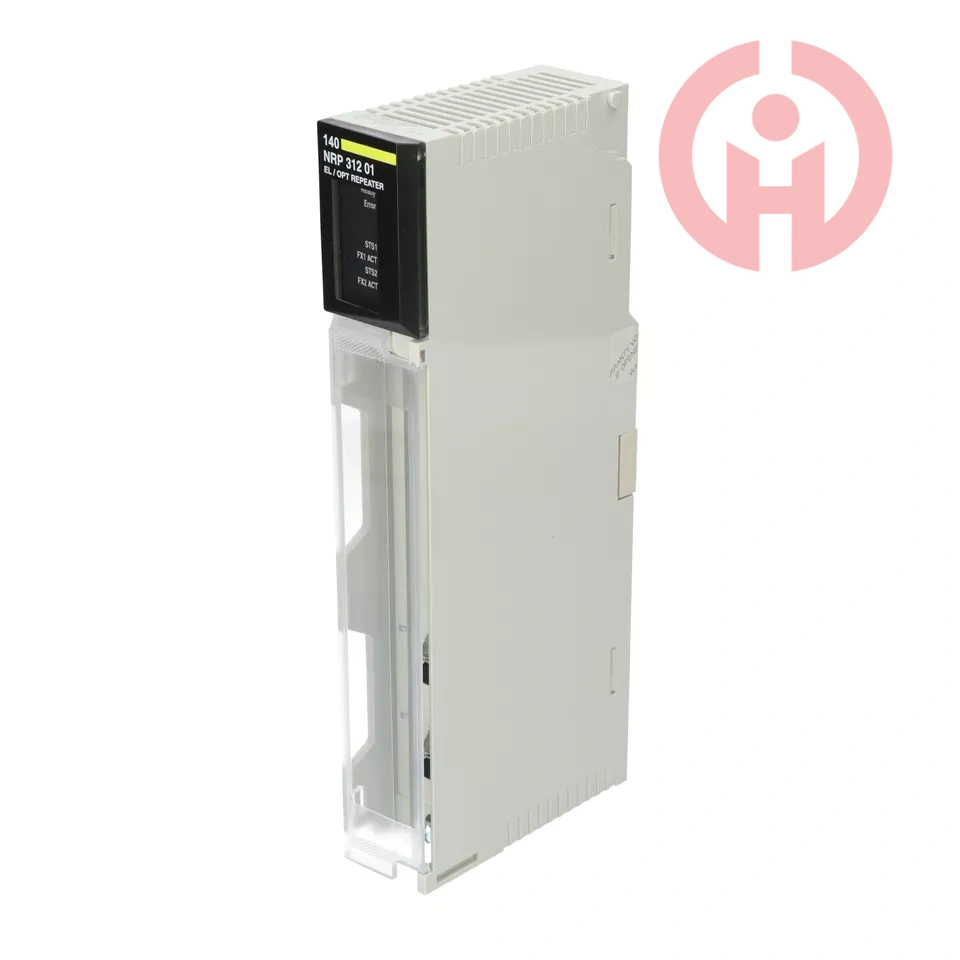

The Schneider 140NRP31201 Ethernet Fiber Optic Module is a high-performance network communication module designed specifically for industrial automation, and is part of Schneider Electric's Modicon Quantum automation platform. This module is mainly used to implement Ethernet fiber optic communication, supporting industrial Ethernet and fiber optic communication technologies, and is suitable for various industrial automation scenarios.
We have a large amount of inventory in our warehouse. Welcome to inquire online about any model and quantity, with discounted prices.
24-hour service for you
Product Introduction
Range of Product
Modicon Quantum automation platform
Product or Component Type
Fibre converter
Optic fiber type
Single mode
Complementary
Bus current requirement
1000 mA
Power dissipation in W
5 W
Inrush current
1 A 5 V DC
Number of Port
2 fiber optic LC
2 ETHERNET RJ45
Local signalling
1 LED green RDY module status
1 LED red ERR internal fault, module failure
1 LED green STS1 channel 1 link status
1 LED green FX1 ACT channel 1 communication status
1 LED green STS2 channel 2 link status
1 LED green FX2 ACT channel 2 communication status
Wavelength
0.000051575 in (1310 nm)
Optic distance between 2 transceivers
49212.6 ft (15000 m) 9/125 µm)-15…-8 dBm
Attenuation
-15…-8 dB 9/125 µm)
Rise/fall time
2.5 ns
Receiver Sensitivity
- 28 dBm
Detected silence
-45 dBm
Marking
CE
Material
PC (polycarbonate)
Width
1.59 in (40.34 mm)
Height
9.8 in (250 mm)
Depth
4.09 in (103.85 mm)
Net Weight
1.221 lb(US) (0.554 kg)
Environment
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Relative humidity
0…95 %
Operating altitude
0...6561.68 ft (0...2000 m)
Standards
UL 508
CSA C22.2 No 142
FM Class 1 Division 2
Product Certifications
TÜV
Merchant Navy
C-tick
