Product Introduction

Range of Product

Modicon Quantum automation platform

Product or Component Type

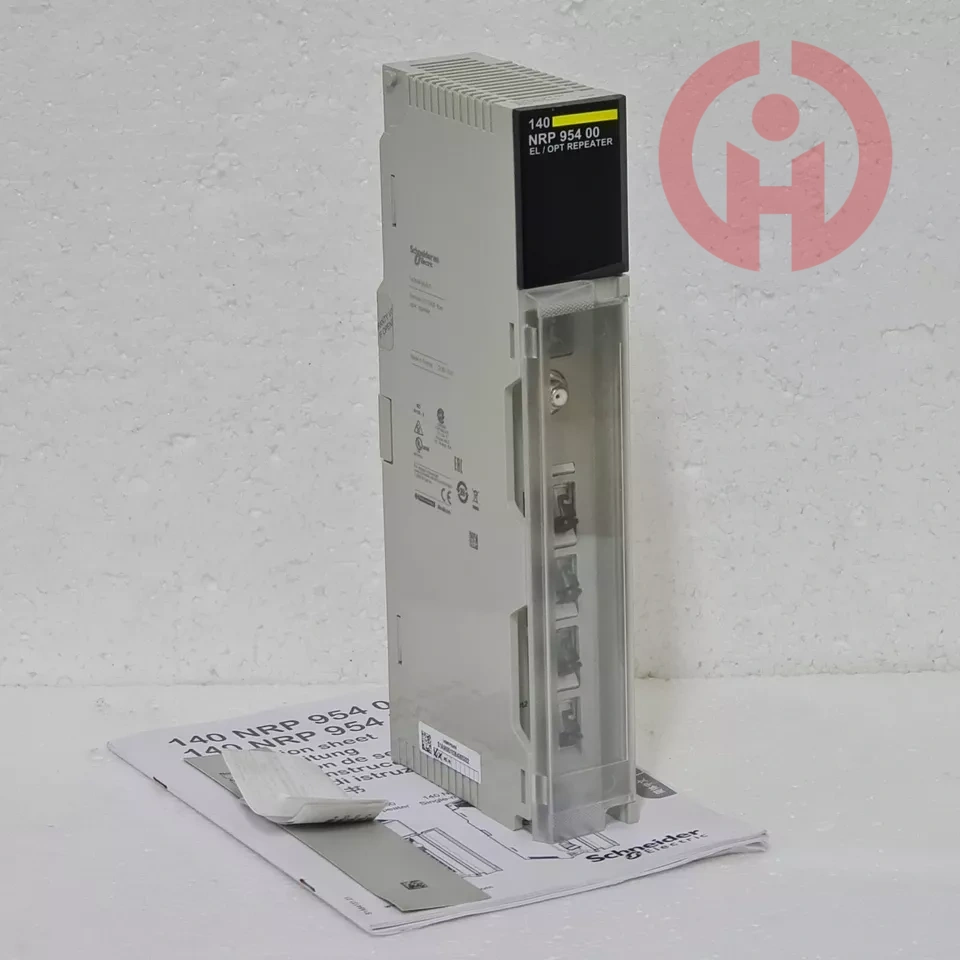

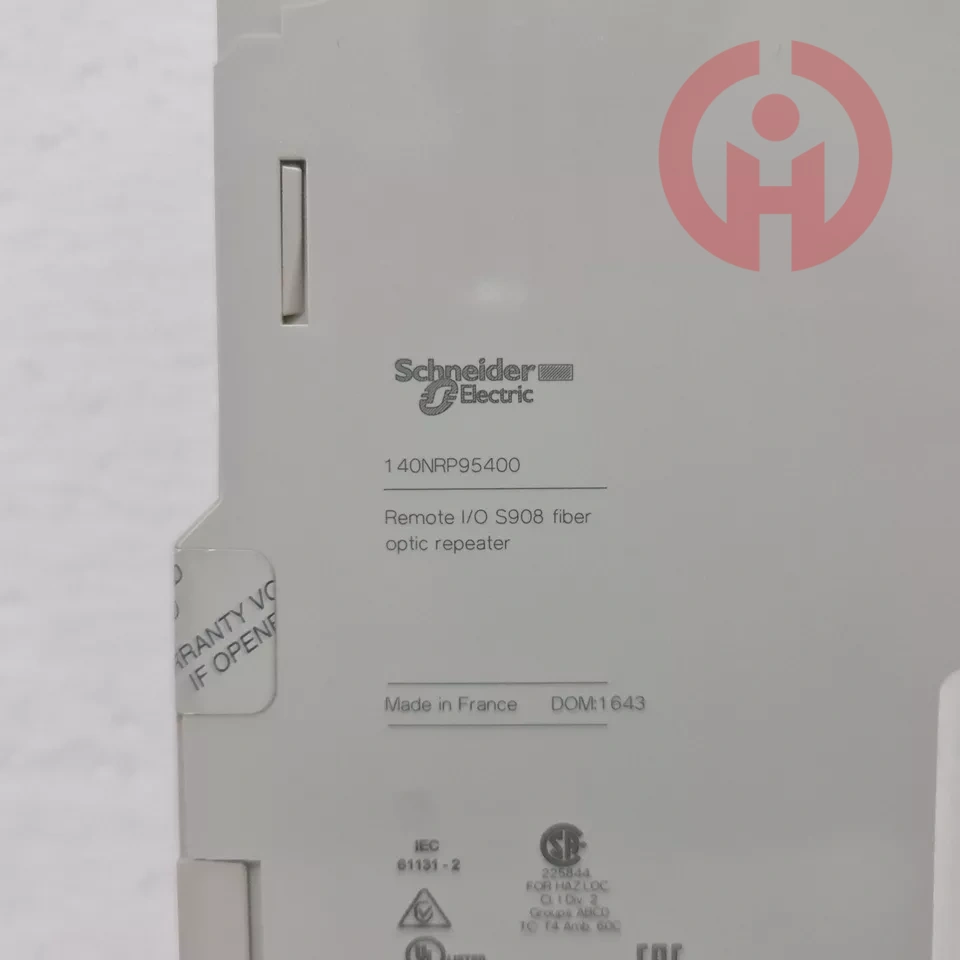

Fibre optic repeater

Optic fiber type

Multi mode

Complementary

Bus current requirement

700 mA

Power dissipation in W

5 W

Inrush current

1 A 5 V DC

Number of Port

2 fiber optic ST

1 coaxial connector

Local signalling

1 LED green RDY module status

1 LED red ERR internal fault, module failure

1 LED green coaxial communication status

2 LEDs green optical communication status

1 LED red FAULT error

1 LED red activity detected

Wavelength

0.000032284 in (820 nm)

Optic distance between 2 transceivers

6561.7 ft (2000 m) 50/125 µm)3.5 dBm

9842.5 ft (3000 m) 62.5/125 µm)3.5 dBm

9842.5 ft (3000 m) 100/140 µm)5 dBm

Attenuation

-20…-13 dB 50/125 µm)

-16…-10 dB 62.5/125 µm)

-10.5…-4 dB 100/140 µm)

Rise/fall time

20 ns

Receiver Sensitivity

- 30 dBm

Dynamic range

20 dB

Detected silence

-36 dBm

Marking

CE

Material

PC (polycarbonate)

AWG Gauge

AWG 14...AWG 1

Width

1.59 in (40.34 mm)

Height

9.8 in (250 mm)

Depth

4.09 in (103.85 mm)

Net Weight

1.221 lb(US) (0.554 kg)

Environment

Ambient Air Temperature for Operation

32…140 °F (0…60 °C)

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Relative humidity

0…95 %

Operating altitude

0...6561.68 ft (0...2000 m)

Standards

CSA C22.2 No 142

UL 508

FM Class 1 Division 2

Product Certifications

TÜV
