Product Introduction

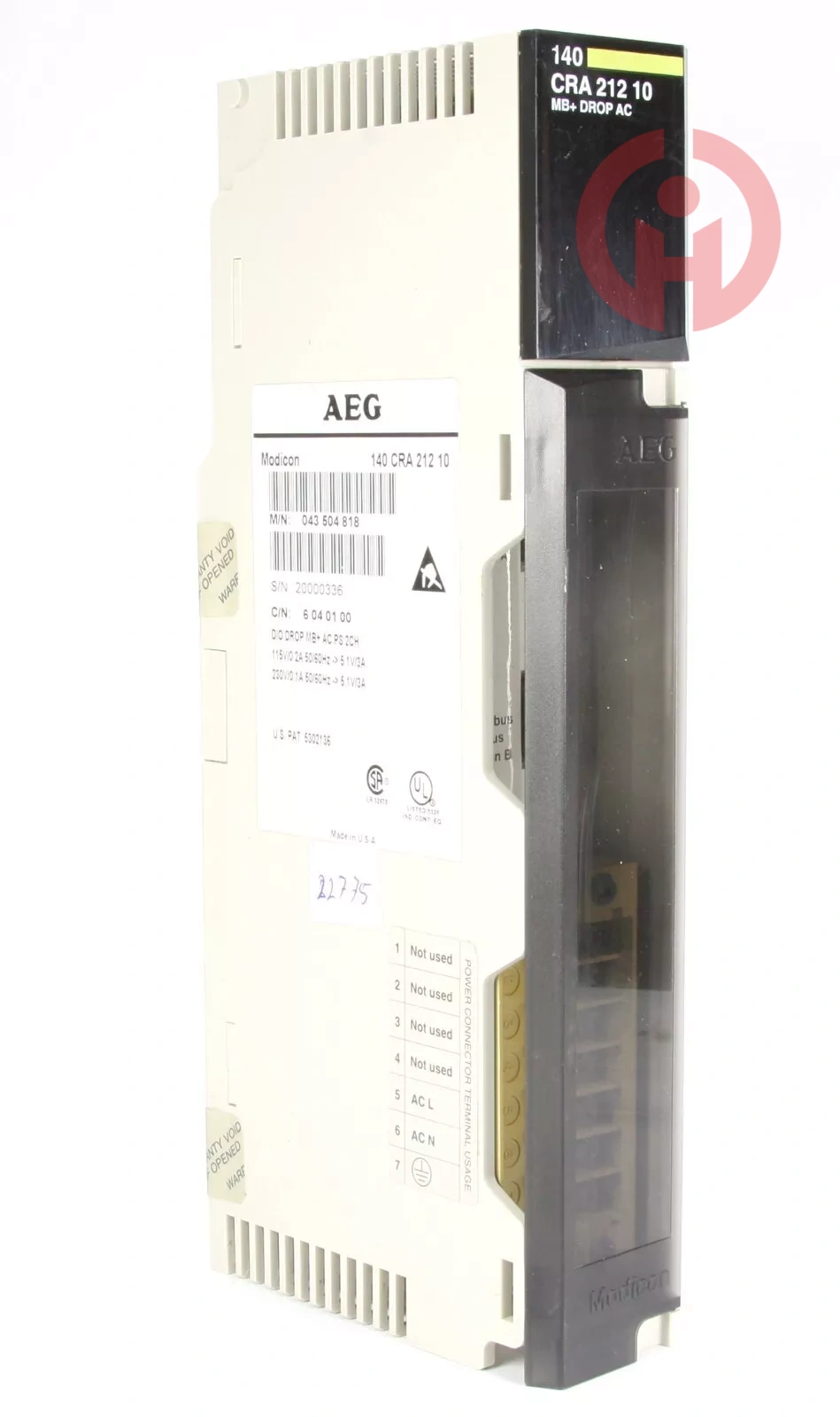

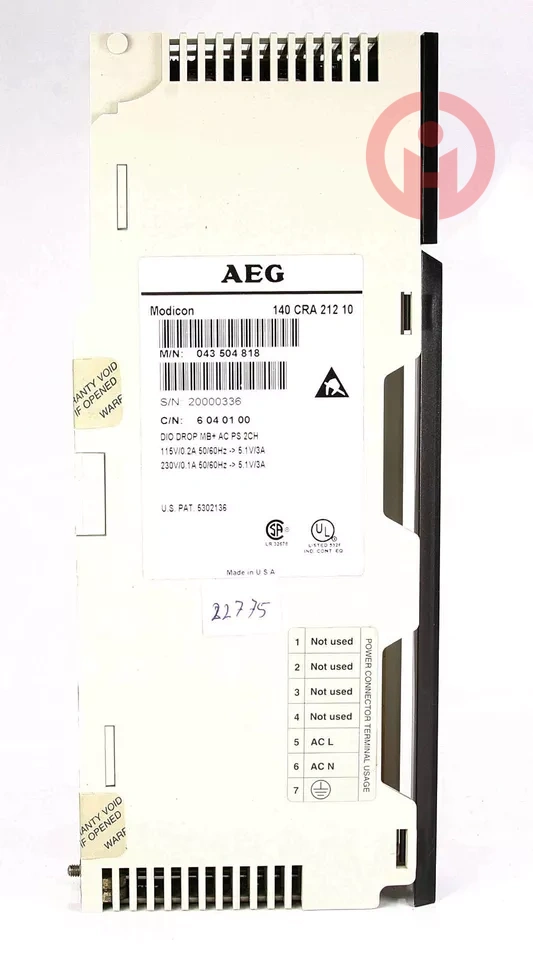

Range of ProductModicon Quantum automation platform
Product or Component TypeDIO drop interface
ComplementaryNumber of port1 single
[Us] rated supply voltage115/230 V AC
Supply voltage limits85…276 V
Supply frequency47...63 Hz
Maximum supply current0.2 A 115 V
0.4 A 230 V
Inrush current10 A 115 V
20 A 230 V
Rated power in VA50 VA
Associated fuse rating1.5 A
Output voltage5.1 V
Nominal output current3 A
Minimum load current0 A
Short-circuit protectionWith
Output overvoltage protectionWith
I/O words30 I/32 O
Typical backplanes16 positions
6 positions
3 positions
2 positions
4 positions
10 positions
Diagnostics startupRAM address
Checksum
RAM
Diagnostics run timeRAM address
RAM
Checksum
Power dissipation in W11 W
Connections - TerminalsTerminal block, 7 poles
Module formatStandard
EnvironmentResistance to electrostatic discharge4 kV contact IEC 801-2
8 kV on air IEC 801-2
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation32…140 °F (0…60 °C)
Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)
Relative Humidity95 % without condensation
Operating altitude<= 16404.2 ft (5000 m)
Protective treatmentTC
StandardsUL 508
Product CertificationsGOST
C-tick
UL
DNV
CSA Class 1 Division 2
