Product Introduction

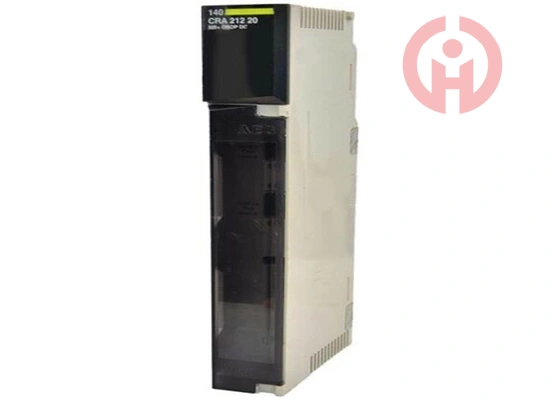

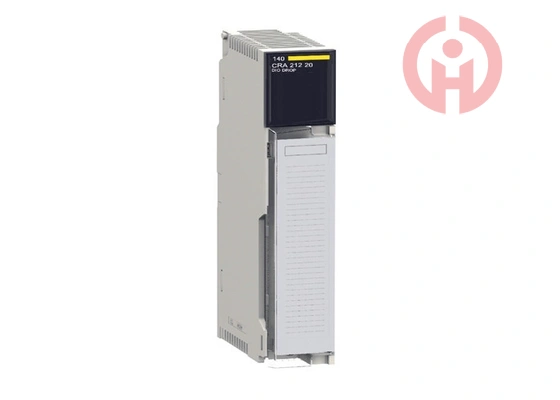

Range of ProductModicon Quantum automation platform

Product or Component TypeDIO drop interface

ComplementaryNumber of port2 redundant

[Us] rated supply voltage24 V DC

Supply voltage limits20…30 V

Maximum supply current1.6 A 24 V

Inrush current30 A 24 V

Maximum buffer time1 ms

Associated fuse rating2.5 A

Output voltage5.1 V

Nominal output current3 A

Minimum load current0 A

Short-circuit protectionWith

Output overvoltage protectionWith

I/O words30 I/32 O

Typical backplanes10 positions

2 positions

6 positions

3 positions

4 positions

16 positions

Diagnostics startupRAM address

Checksum

RAM

Diagnostics run timeChecksum

RAM

RAM address

Power dissipation in W11 W

Connections - TerminalsTerminal block, 7 poles

Module formatStandard

EnvironmentResistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)

Protective treatmentTC

StandardsUL 508

Product CertificationsUL

C-tick

GOST

CSA Class 1 Division 2

DNV
